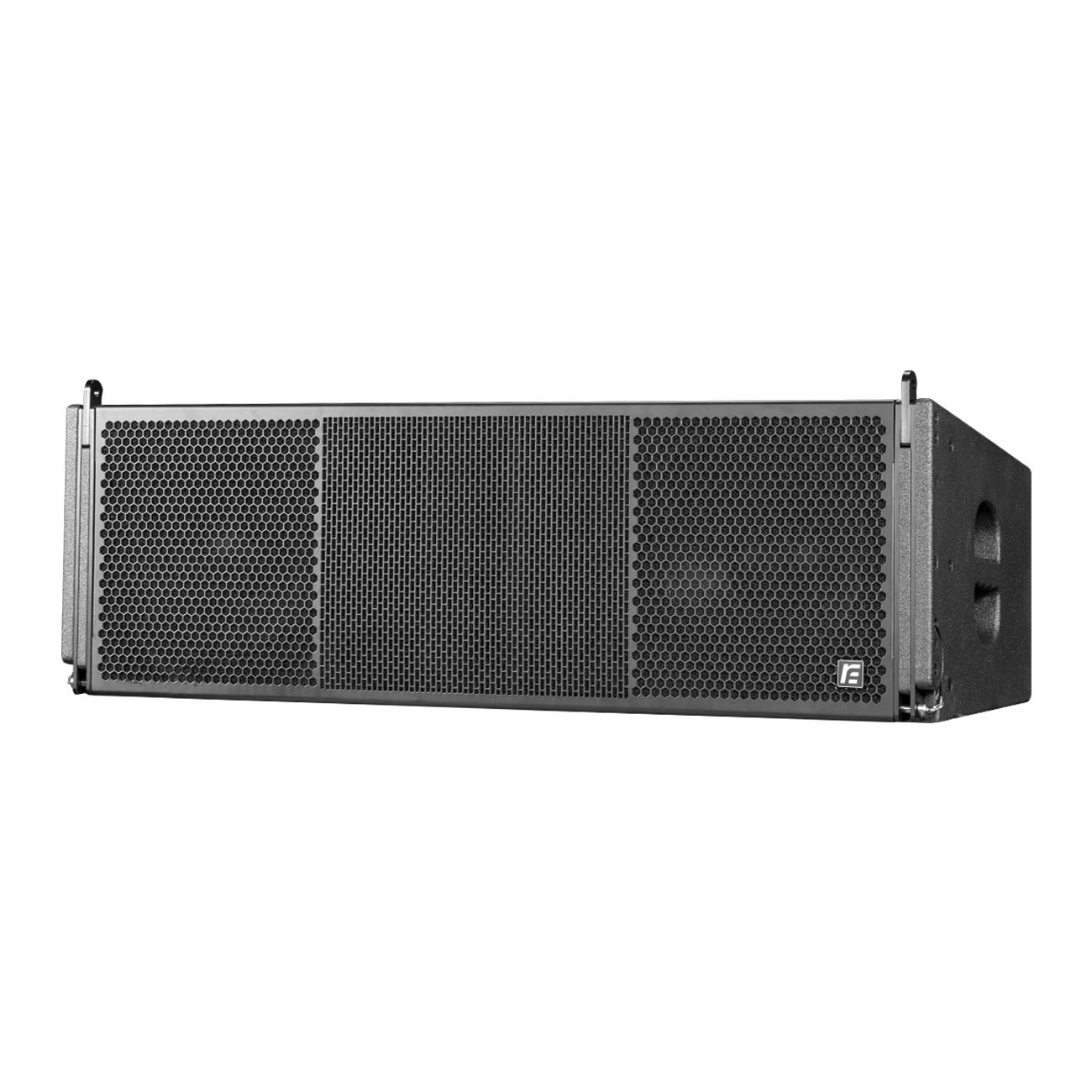

GTS312
  • Dual12”Three-way Tri-amp Line Array Speaker

GTS312

  • • System:Dual12”Three-way Tri-amp Line Array Speaker

    • LF unit:2 ×12"(3"voice coil)

    • MF unit:4×6.5"(2"voice coil)

    • HF unit:2 ×3"(3"voice coil)

    • Frequency response:60Hz~18kHz(±2dB)/50Hz~20kHz(-10dB)

    • Sensitivity( 1W/1m ):HF:112dB MF:103dB LF:102dB

    • Rated power( AES ):HF:150W MF:60 0W LF:900W

    • SPL(Continuous/Peak):HF:133/139dB MF:130/136dB LF:131/137dB

    • Nominal impedance:HF:16Ω MF:16Ω LF:16Ω

    • Dispersion(H×V):100°×10°

    • Crossover:HI-MID:HI-MID:1.3kHz LO-MID:300Hz

    • Connector:2×S28-ZV 7pin socket HF:1+ 2-,MID:3+ 4-,LF:5+ 6-
