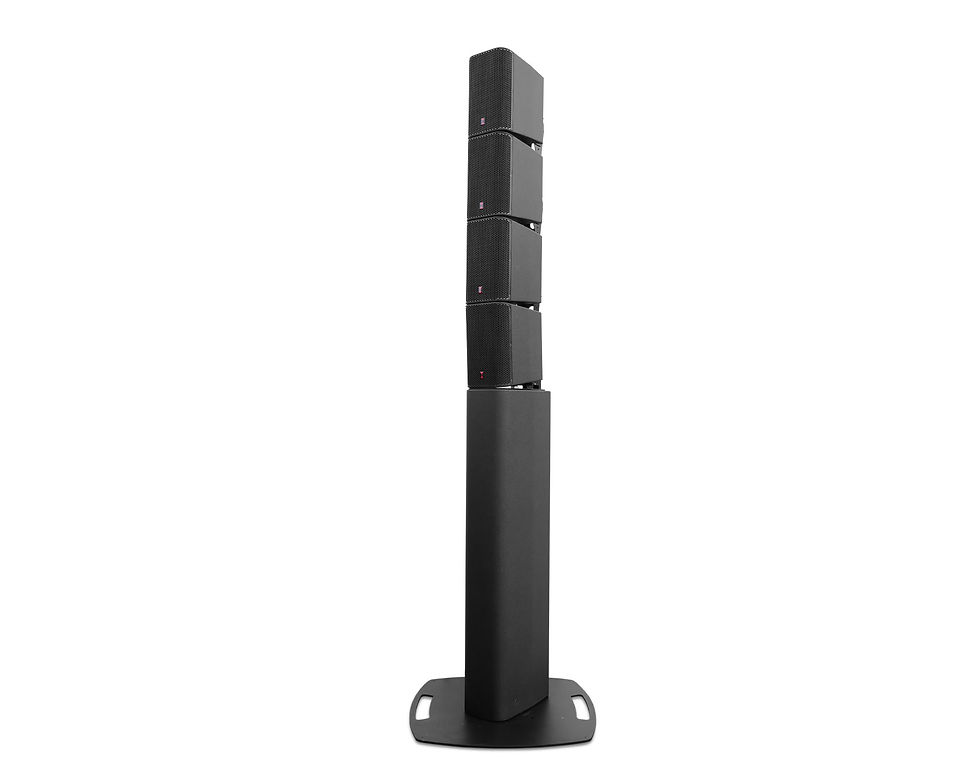

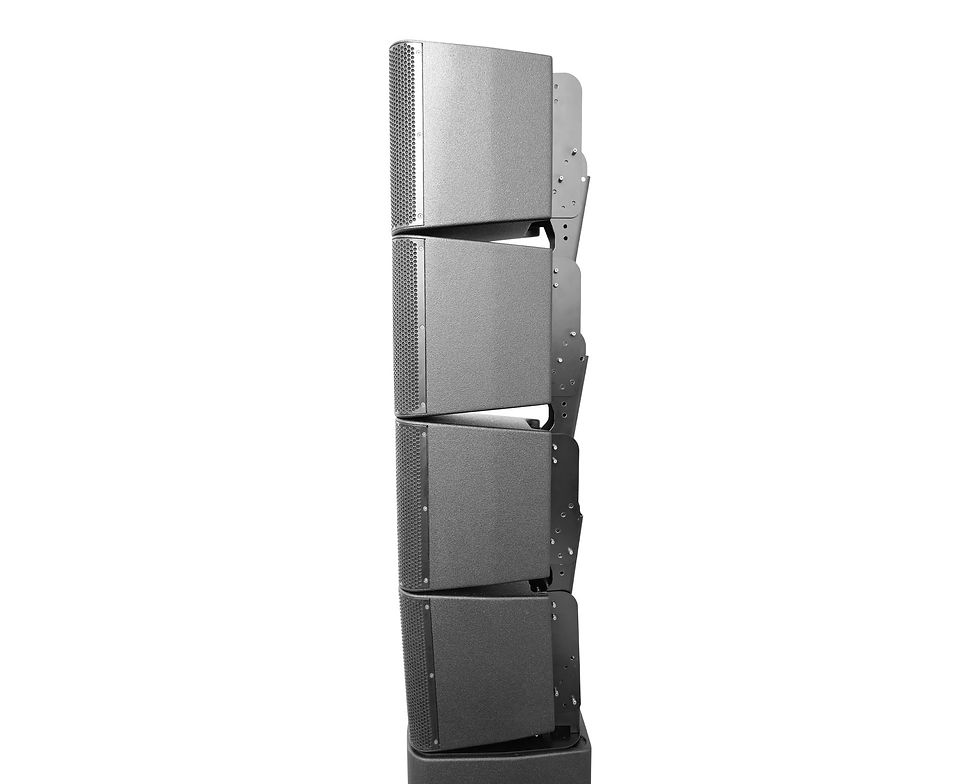

Ikarray-6

  • passive 2-way compact line-array system
  • 2 x 6.5" / 8 x 1" Neodym
  • h x v: 100° x 10°


Ikarray-6

  • Drivers
    LF: 2 x 6.5" Neodym woofer with 1.8" voice coil
    HF: 8 x 1" Neodym dome tweeters with 1" voice coil

    Frequency range
    57 Hz - 22.5 kHz (- 10 dB)
    110 Hz - 17 kHz (+/- 3 dB)

    Coverage range (h x v)
    100° x 10°

    Impedance
    16 Ω

    Powerhandling (AES / Program / Peak)
    LF: 400 W / 800 W / 1,600 W

    Sensitivity 1 W/1 m
    97dB SPL

    Sound pressure at (AES / Program / Peak)
    121 dB SPL / 124 dB SPL / 127 dB SPL

    Connection
    2 x NEUTRIK NL4 IN/OUT 1+/1- (4-pole looped-through)

    Finish
    Polyurea coating in RAL 9005

    Dimensions / Weight
    347 (H) x 210 (W) x 303 mm (D) / 8.9 kg
