- 1 x 15" compact bass reflex subwoofer
- World's flattest 15" bass with only 36 cm height
- Horizontal and vertical usable
- Additional Speakon plugs in the grille for front connection
Paveosub-115
Speaker drivers
1 x 15" Neodym long excursion woofer (LF) with 4" voice coil, cone waterproof treatment
System
compact and flat bass reflex subwoofer
Lower cut-off frequency
34 Hz (- 10 dB)
45 Hz (- 3 dB)
Coverage range (h x v)
Omnidirectional
Impedance
8 Ω active separated
Powerhandling LF 8 Ω
1,200 W AES, 2,400 W program, 4,800 W peak
Sensitivity dB SPL 1 W/1 m
98 dB SPL (half space)Sound pressure at (AES / programm / peak)
129 dB SPL / 132 dB SPL / 135 dB SPL
Connectors
4 x Neutrik NL4 Speakon IN/OUT, 2+/- LF
Handles
2 x shell type handle
Foot
8, each 4 x on a flat and narrow side with opposite stacking trays
Fittings
2 x M20 pole mount
2 x latches on the front for detachable wheelboard
Housing
30 and 15 mm birch plywood CNC machine-splined and bolted
Finish
Water based textured black lacquer RAL 9005, 2 coats of varnish. Surface can be repaired and restored
As an Option, other surface colors according to RAL-tones can be provided in a matter of days
Front grille
Galvanized and powdered black honeycomb grille RAL 9005, 10 mm acoustic foam behind grille, front logo
RAL-tones are available as an option to the standard color as well as chrome, and, with or without foam
For ‘No-branding’ installations, the logo on the front grille can be removed without leaving any visible marks
Dimensions / Weight
360 (h) x 540 (w) x 570 mm (d) / 27 kgThe Paveosub-115 is a very compact bass reflex subwoofer for universal applications.
With its low profile of only 36 cm and a width and depth of only 54 x 57 cm, the bass is ideal for fixed installations where a discreet appearance is required and the loudspeakers need to be integrated into the architecture as unobtrusively as possible.
In mobile use, the Paveosub-115 saves a lot of space and weight with a transport volume of only 110 litres. The two large handles can take hold from all sides and are located at the centre of gravity.
A removable and stackable front wheel board is available as an accessory for easy handling of the subwoofer, which weighs only 27 kg. The optional transport protective cover also can be used as weather protection at outdoor events.
The Paveosub-115 is equipped with a newly developed neodymium transducer with 4" voice coil that can handle 1.200 W AES. The magnet system has three demodulation rings for particularly low distortion. Massive cooling fins ensure low power compression at maximum performance. Together with a high linear excursion and a low moving mass, the subwoofer offers deep, powerful and at the same time very precise bass reproduction.
Internal bracing ensures maximum stability and prevents unwanted cabinet resonances.
The Paveosub-115 can be connected from the front via two Speakon plugs on the front side of the grille, for example to use under stage podiums or in cardioid applications. To protect against dirt and moisture, the Speakons are covered with undetachable rubber caps.

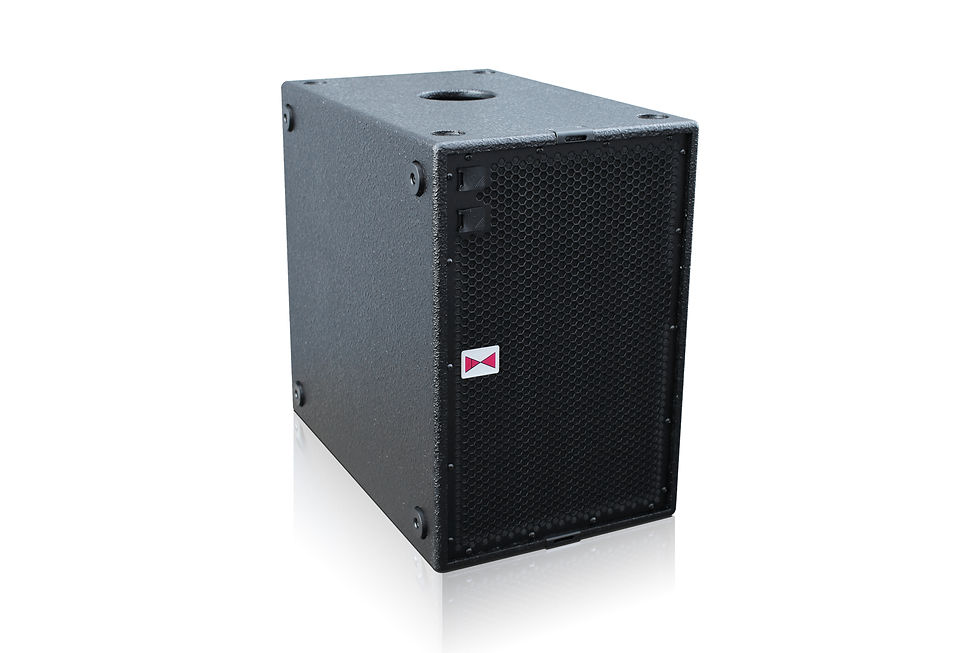

The subwoofer can be used flat or upright. On two sides there are stacking moulds, rubber feet and M20 flanges for flexible use with an attractive appearance, depending on the combined satellite loudspeakers. Standing upright, the Paveosub forms a very slim silhouette.
The stacking moulds on the top of the sub are in the same foodprint as the CXN-16 stage monitor. In addition, both loudspeakers have a width of 54 cm and thus form an elegant optical unit and are a professional set for drum or DJ monitoring, for example. A self-powered Paveosub-115sp can power a CXN-16 bi-amping in half-powered mode.
The Paveosub-115 can also be converted at the factory to the self-powered version with 3-channel 4 kW power amplifier module and DSP board.
