VENIA-6



  • 4 x 6.5"/3 x 1", column line array
  • Click-in flyware, tool-free flying mechanism
  • Dual-tilt high stand flange 0° and 5
  • Oversized HF unit for very low distortion, smooth highs and clarity
  • Asymmetrical energy distribution with concentration of energy at long distance
  • Even volume from front to rear
  • Discreet and very elegant design
  • Optional design stand in identical look

VENIA-6

  • Drivers
    LF: 4 x 6.5" Neodym woofer with 1.8" voice coil
    HF: 3 x 1" Neodym compression driver with 1.75" voice coil

    Frequency range
    48 Hz - 19 kHz (- 10 dB)
    80 Hz - 19,5 kHz (+/- 3 dB)

    Coverage range (h x v)
    100° x 0°/ -20°

    Impedance
    8 Ω

    Powerhandling (AES / Program / Peak)
    800 W / 1,600 W / 3,200 W

    Sensitivity 1 W/1 m
    99 dB SPL

    Sound pressure at (AES / Program / Peak)
    128 dB SPL / 131 dB SPL / 134 dB SPL

    Connection
    2 x NEUTRIK NL4 IN/OUT 1+/1- (4-pole looped-through)

    Finish
    Polyurea coating in RAL 9005

    Dimensions / Weight
    1.050 (H) x 213 (W) x 390 mm (D) / 27.9 kg

  • The Voice-Acoustic VENIA-6 is a passive 2-way column line array loudspeaker, equipped with 4 x 6.5" drivers and 3 x 1" compression drivers. The high-frequency drivers are coupled to a line array waveguide and produce a dispersion angle of 100° horizontally and 0°/-20° vertically via a large horn.

    The HF section of the VENIA series provides a vertically asymmetrical sound pressure coverage with a plane wavefront. The principle of larger line arrays is transferred to the VENIA loudspeakers in a compact column format: the high-frequency energy is bundled to cover longer distances and the near filed is covered by curving with a lower energy content distributed to a larger area. The result is a very balanced level distribution across the entire listening area with very homogeneous sound distribution. This gives VENIA-6 an enormous advantage as a single loudspeaker and is also easier and faster to set up and commission than conventional line array systems.

    Energy coverage VENIA Series: Very even volume coverage from front to back

    Energy coverage conventional loudspeaker: Loud at the front and quiet at the back

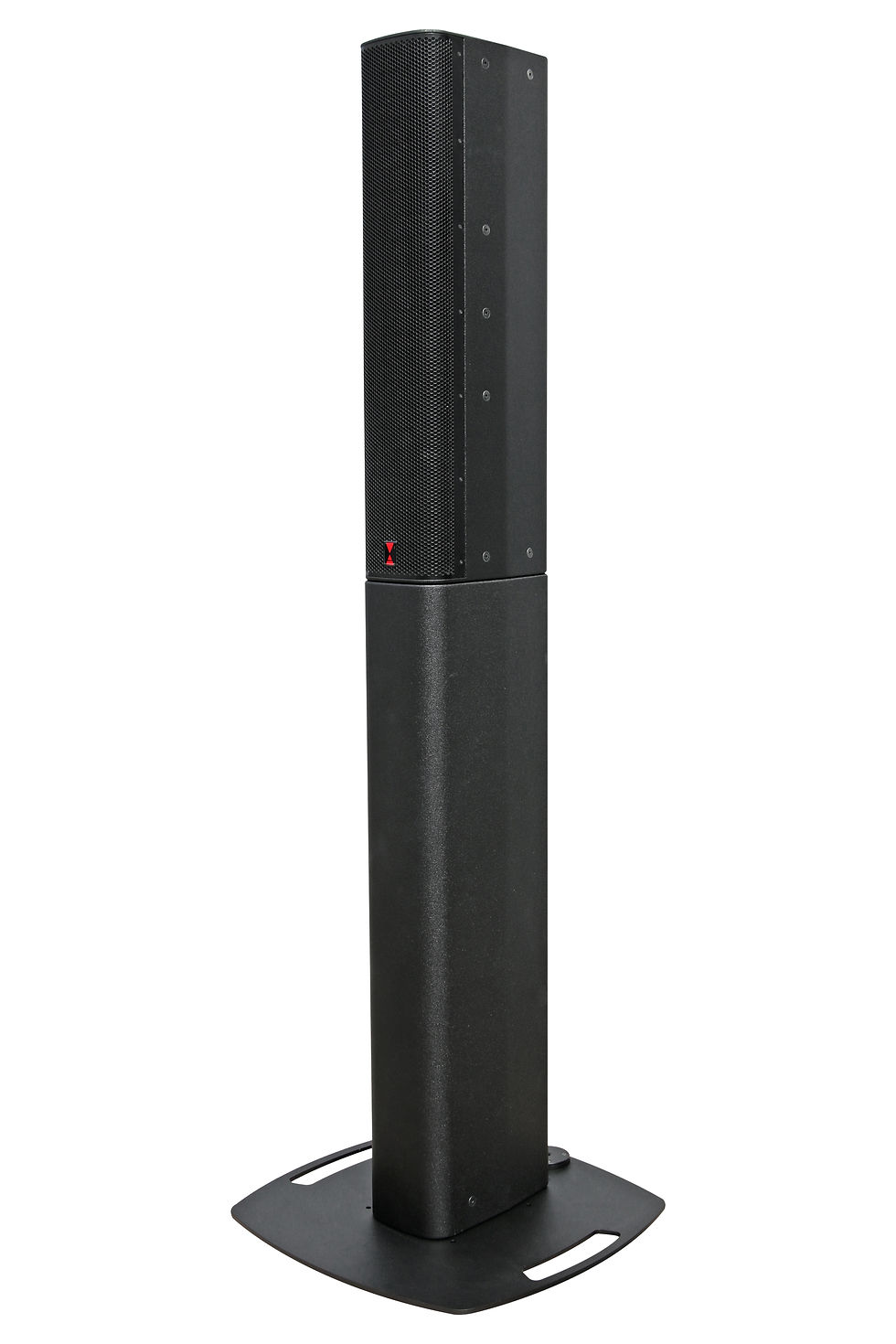

    With its slim appearance, the VENIA series makes a valuable appearance in all mobile applications and in fixed installations. The beautifully curved front grille with discreet mini-honeycomb perforation and large R50 side radii makes the loudspeaker look very elegant and integrate discretely even in architecturally sophisticated surroundings. With the optional X-Tension, a designer stand with the same enclosure format, the VENIA-6 becomes a design sculpture and can be raised to a visually appealing height. A steel base plate is available to ensure that the X-Tension stands securely. In addition, the X-Tension can be mounted on any subwoofer with an M20 flange.

    With its low crossover frequency, the VENIA-6 is also a convincing full-range stand-alone solution. With its powerful performance, it is also an elegant Main-PA in combination with several subwoofers. A stereo pair of VENIA-6s can be combined with up to six Paveosub-118. Thanks to the powerful high-frequency driver unit, the VENIA-6 always plays in a relaxed and pleasant manner, even at high volumes, and meets even the highest sonic demands.

    The VENIA-6's sophisticated detail solutions and extensive range of accessories allow for a wide variety of applications and installations. The integrated pole mount, the tool-free mountable Voice-Acoustic Easyfly mechanism, or the U- and C-bracket and various M10 mounting points leave nothing to be desired. For best handling in mobile operation, up to 11 u-shaped handles can be mounted vertically and horizontally on the rear. A safety cable for secondary safety can be attached with a single-stud. Two VENIA loudspeakers can be operated in head stacking configuration, which extends the range of applications.
